📊 Basic Information
Certification
CE, RoHS, CCC, GS, Energy Star, FCC, SAA, NOM, PSE, EMC, LVD
💡 Product Description & Advantages

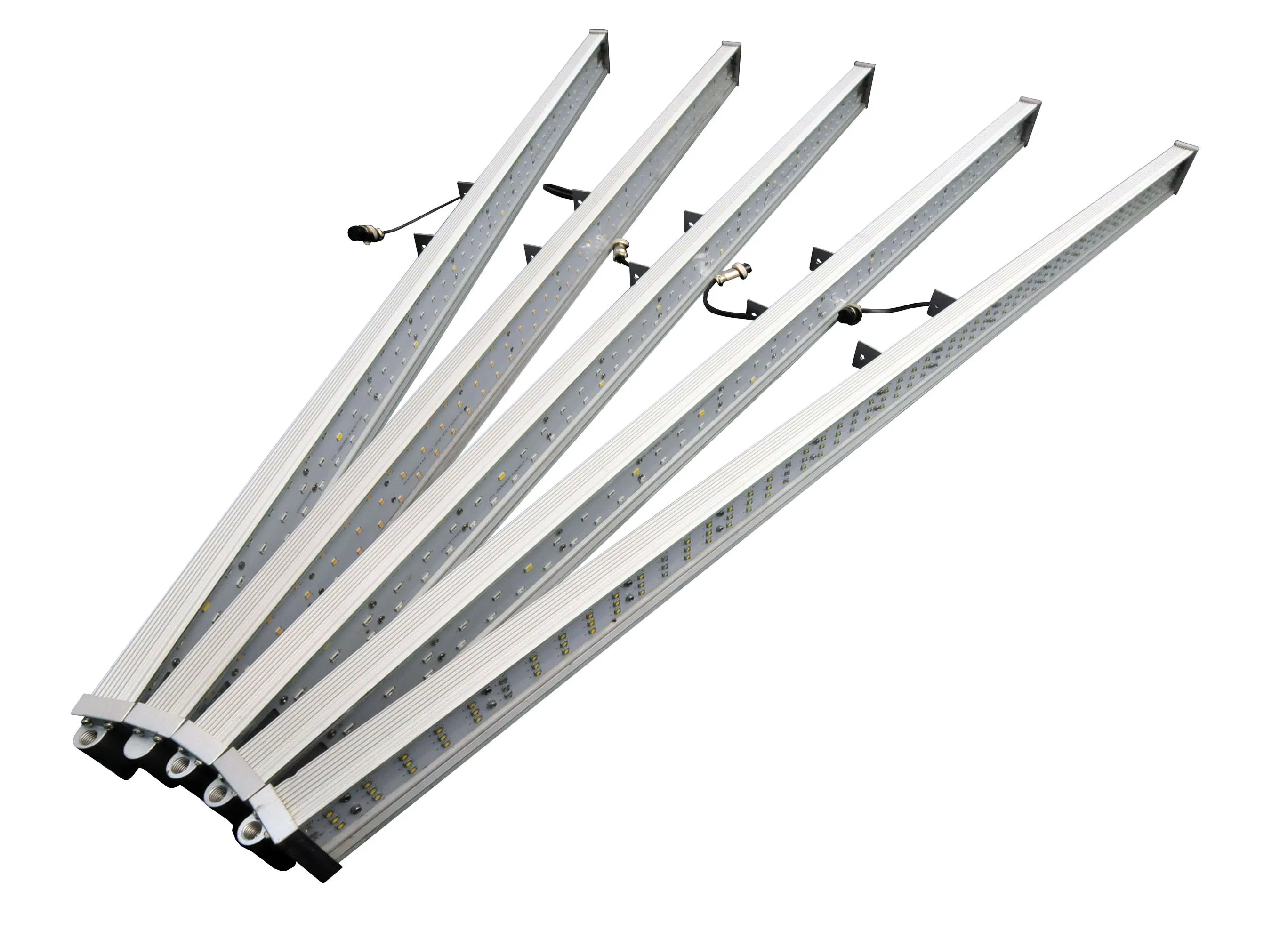

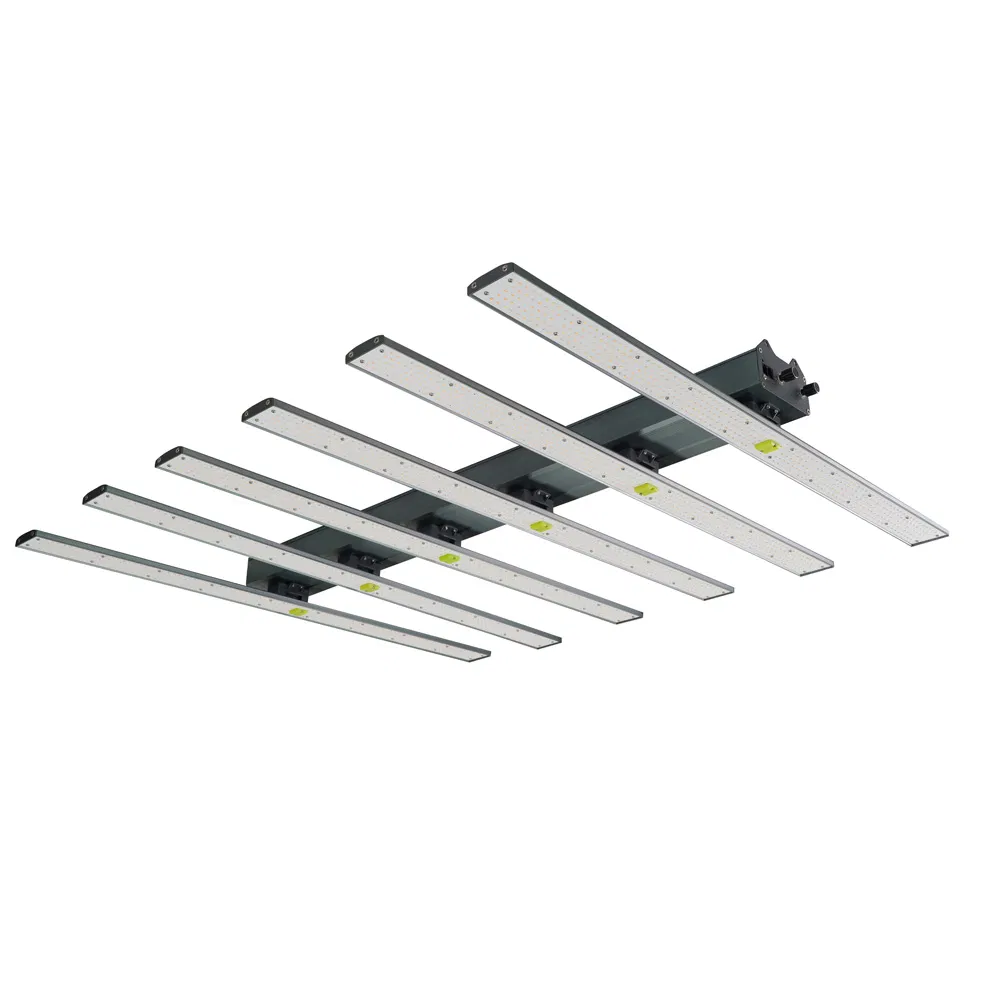

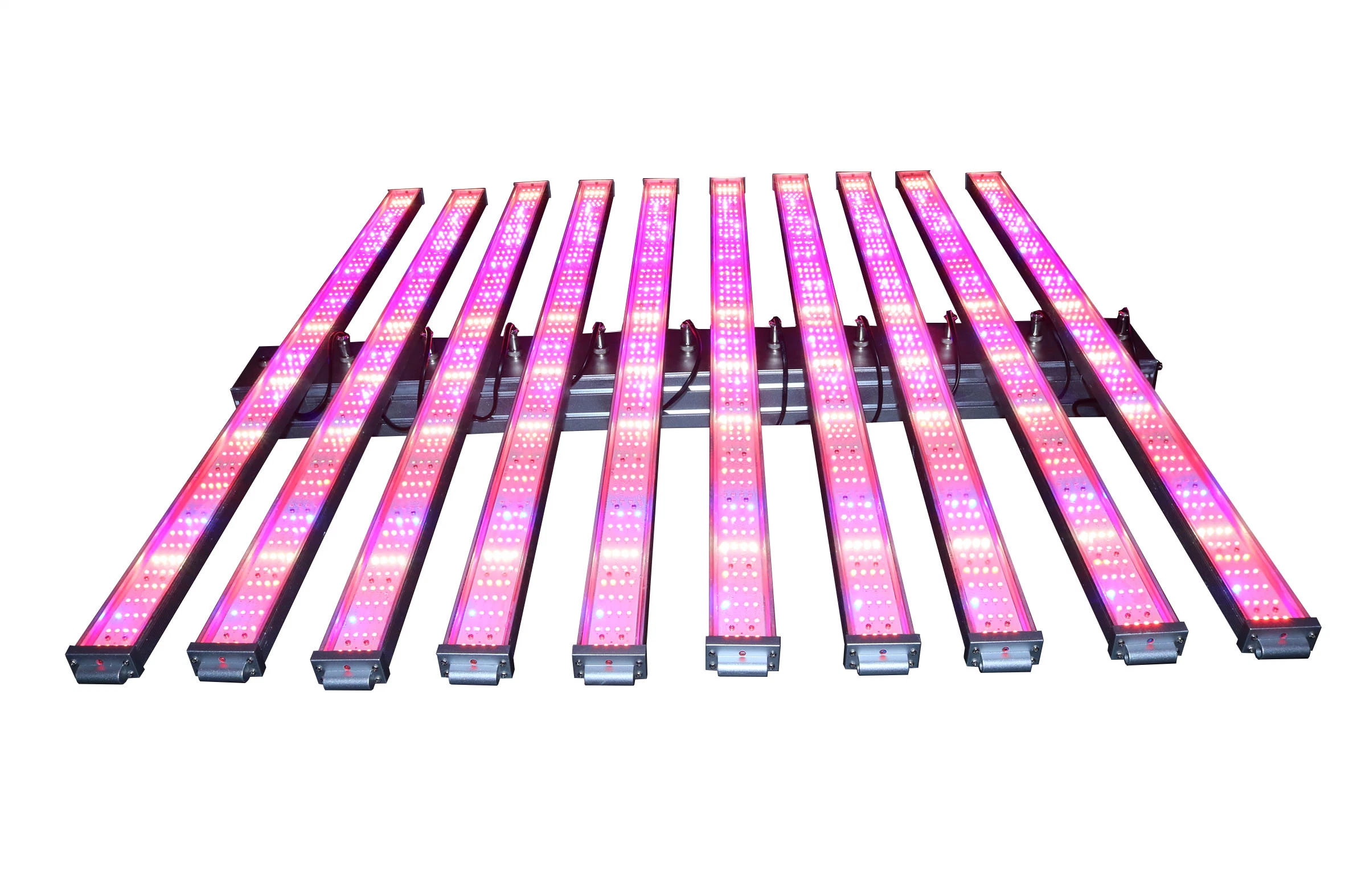

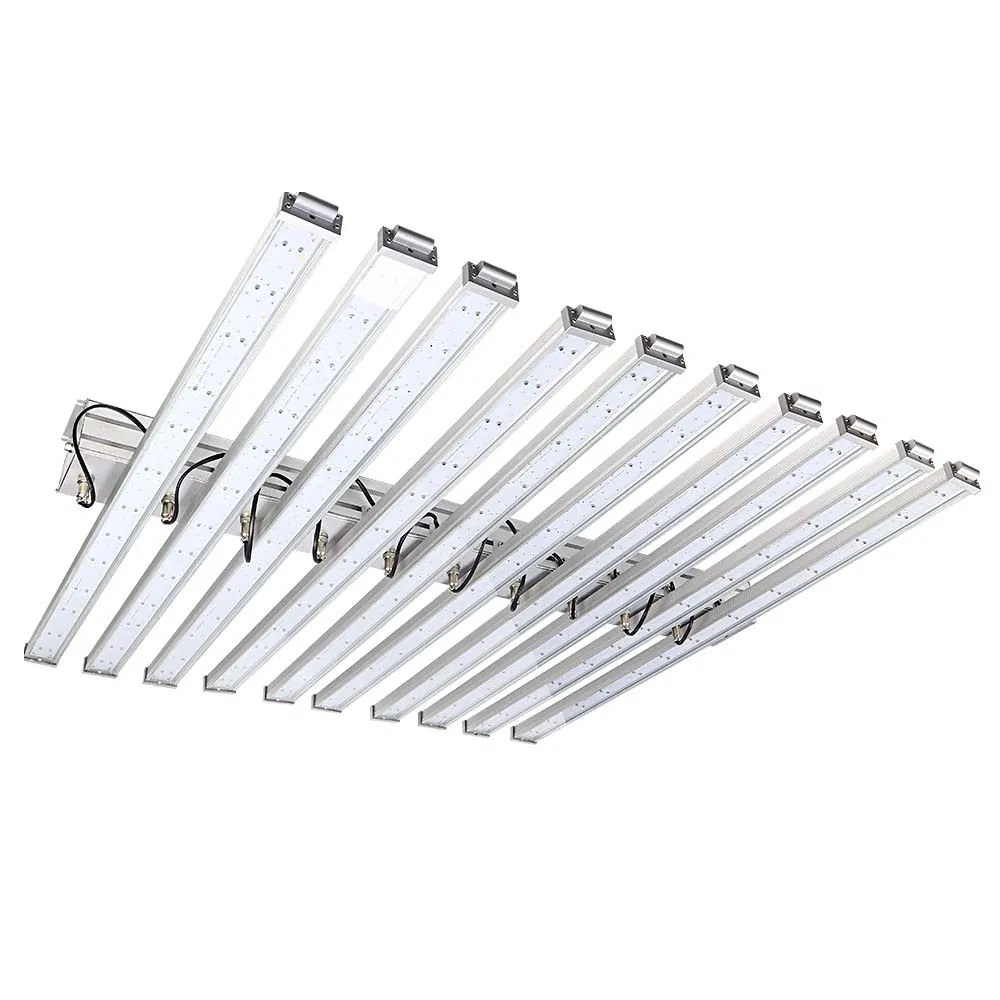

Adjustable LED Plant Grow Bar Light
- Customizable LED Spectrum: Optimal full spectrum providing plants at Veg and Flower stages with everything they desire from natural sunlight.
- Scientific Design: Includes universal Blue, Red, IR, UV, and White light. Expensive IR UV LEDs promote defense mechanisms, while blue and red are essential for growth.
- Flexible Adjustability: Adjustable bars allow for customized distance and lighting direction to control intensity.
- Thermal Management: Aluminum bar structure facilitates excellent heat dissipation and air convection for a long lifespan.
- Superior Efficiency: Replaces traditional 400 watt HPS/MH while consuming significantly less power, covering up to 6 square meters at 1m height.

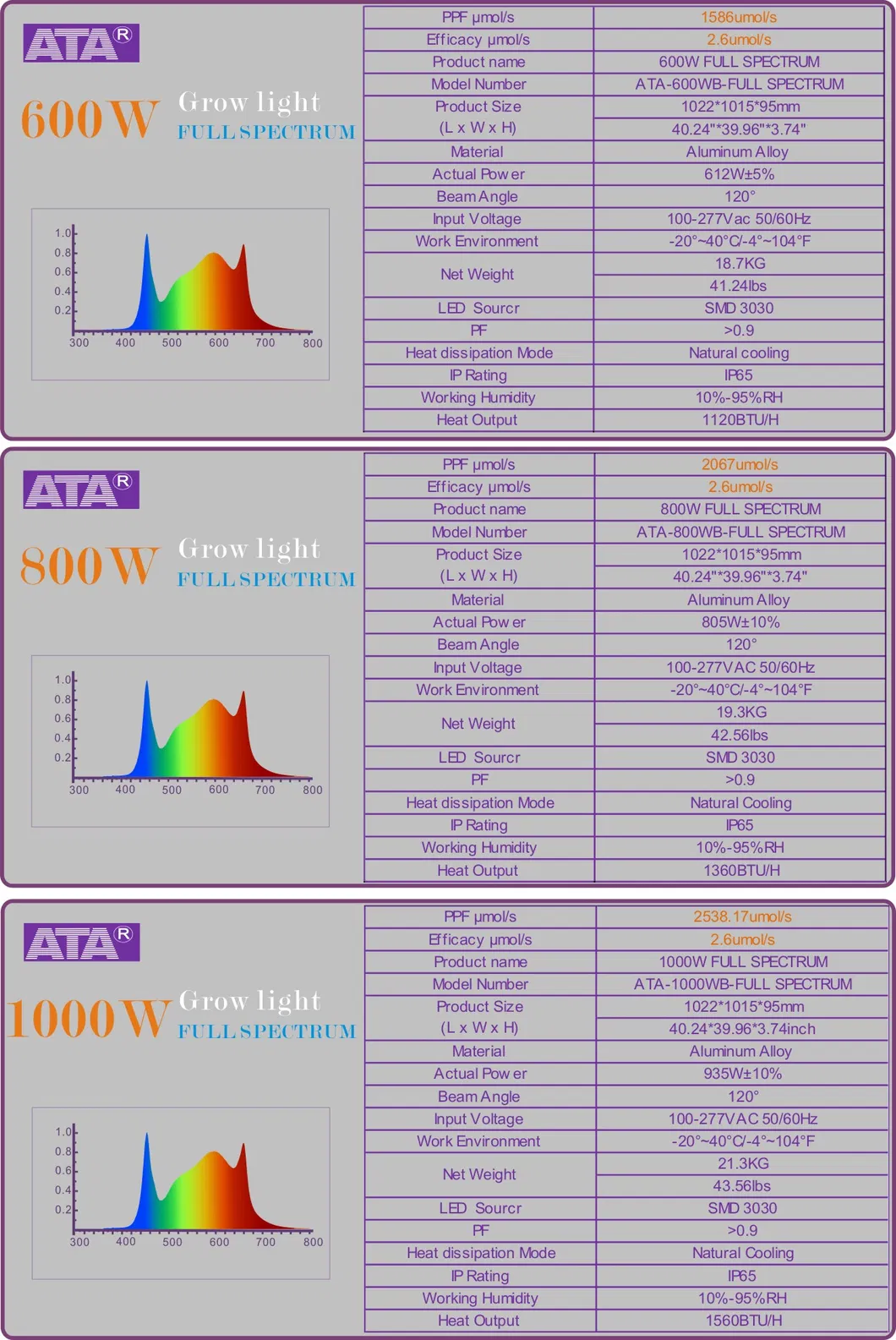

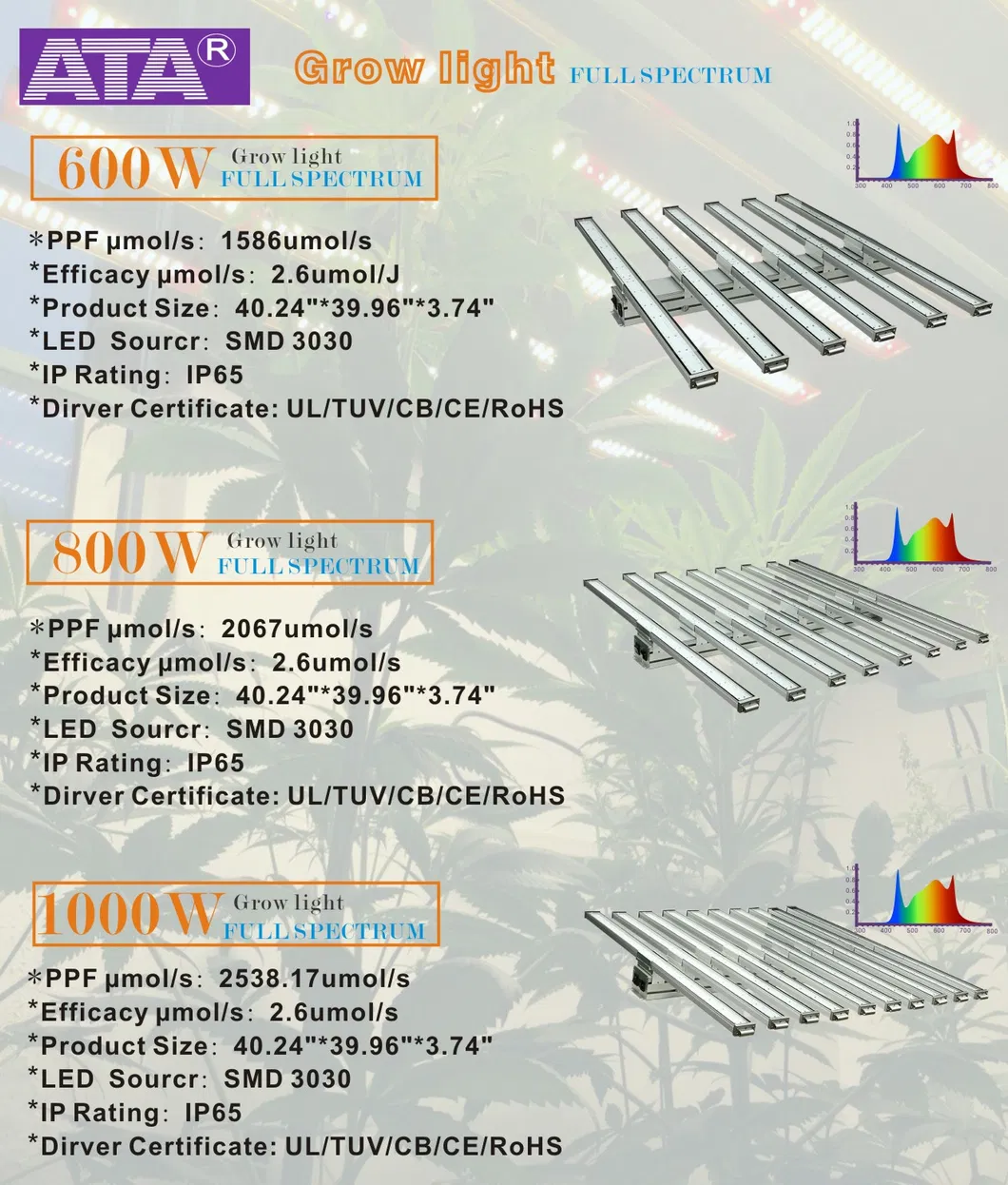

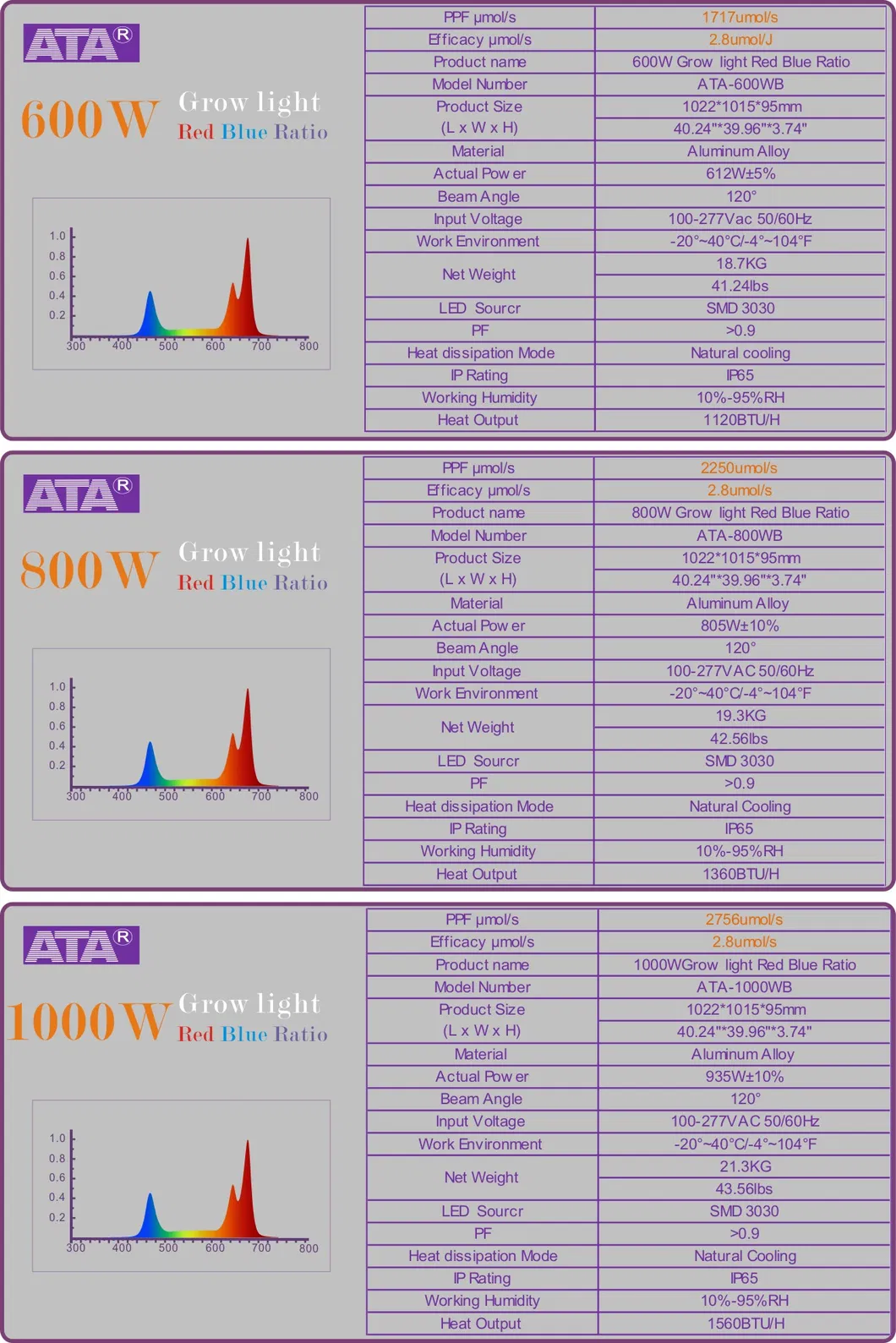

⚙️ Technical Specifications
| Feature |
ATA-M600W |
ATA-M600W-LENS |
ATA-M600W-FULL SPECTRUM |
| Product Size | 1022*1015*95mm | 1022*1015*95mm | 1022*1015*95mm |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Power Consumption | 545W±5% | 545W±5% | 545W±5% |
| Led Type | 3W / 3030 LED | 3W / 3030 LED | 1W / 5730 LED |
| Beam Angle | 120° (No Lens) | 90° (With Lens) | 120° (No Lens) |
| Input Voltage | 100-277Vac 50/60Hz |
| PPF (µmol/s) | 1586 | 1586 | 1586 |
| IP Rating | IP65 | IP65 | IP65 |
| Lighting Area | 1M High - 6.0 Square Meters |
📈 Performance & Dimensions
PPFD Distribution
Spectrum Analysis
Product Dimensions
🌿 Application & Installation

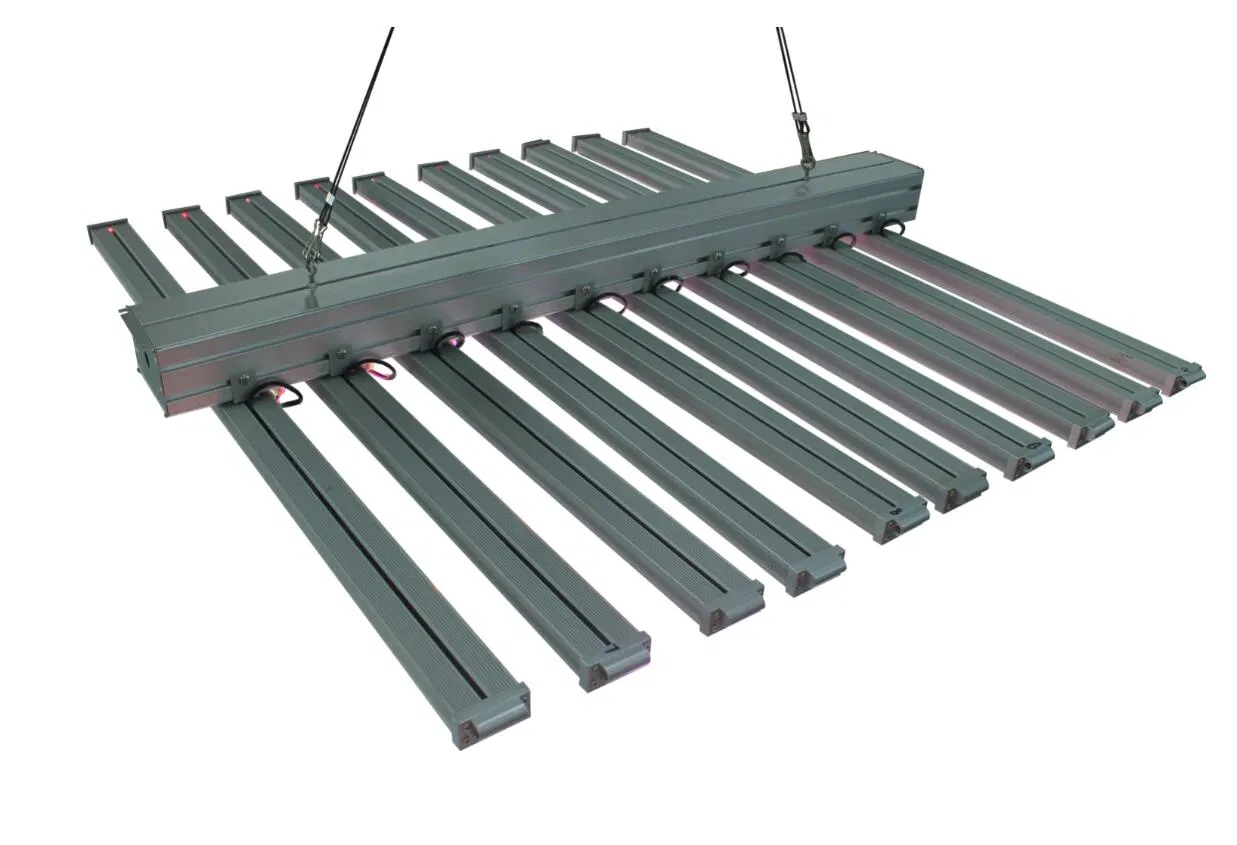

Installation Method: Suspending

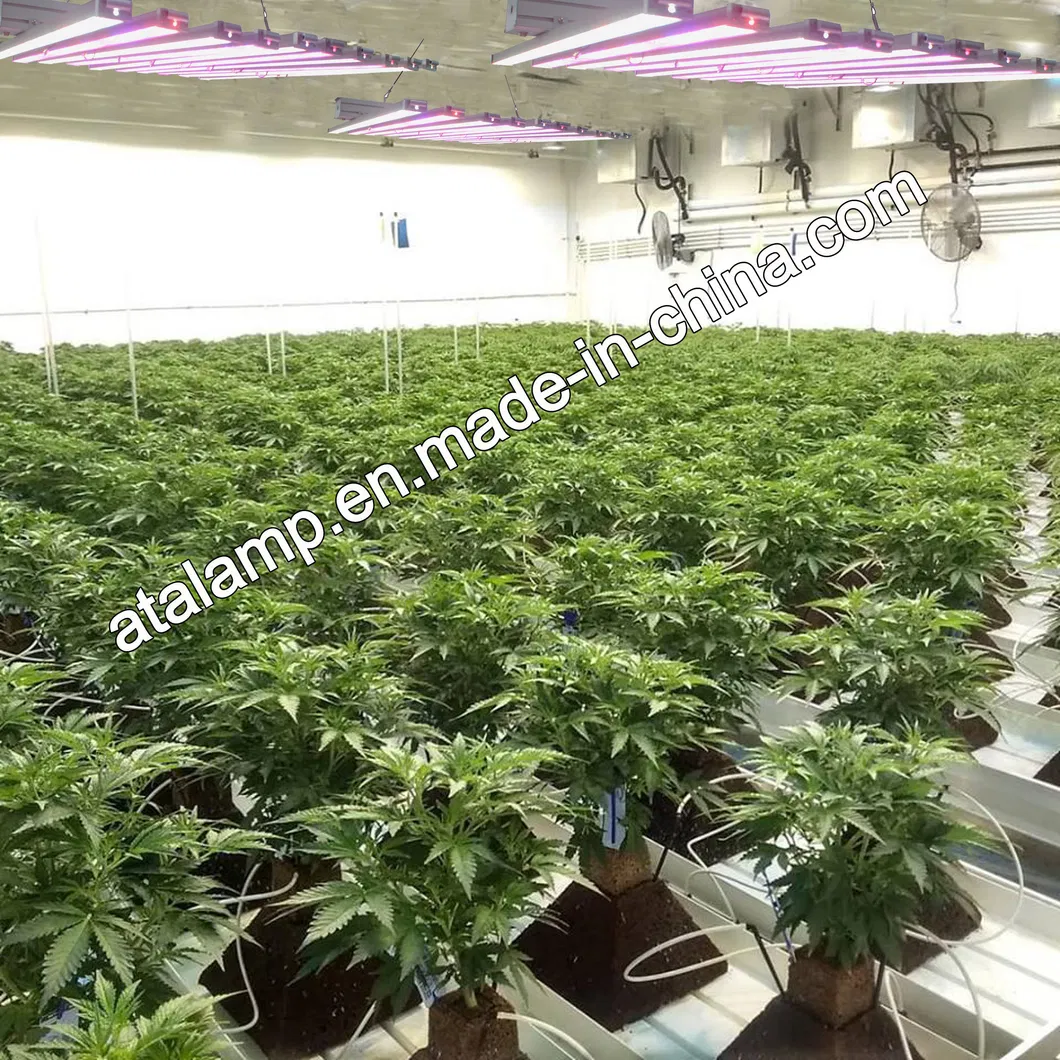

Wide Application: Suitable for Fruit, Vegetables, Flowers, Medical plants, Indoor gardens, Greenhouses, Seedlings, and more.
✅ Quality Control & Guidelines
User Safety: Switch off power before any work. Installation must be performed by an electrical expert. Ensure mounting on a stable background.
Strict Testing:
• Stability TEST: 100% aging test for at least 48 hours.
• Lighting TEST: 100% verification before packing.
• Drop TEST: Ensures every light is well-protected by packaging.
❓ Frequently Asked Questions
Q1: What is the benefit of the Full Spectrum design?
The full spectrum design provides all necessary light waves (including IR and UV) that plants require from natural sunlight for both vegetative and flowering stages.
Q2: How does the cooling system work?
The unit utilizes an aluminum bar structure for passive natural cooling or can be adapted for water cooling, ensuring excellent thermal management and long life.
Q3: Is the light suitable for high-humidity environments?
Yes, the light is rated IP65 and can operate in working humidity levels between 10% and 95% RH.
Q4: Can the intensity of the light be adjusted?
Yes, the bars are adjustable, allowing you to change the distance between them to modify lighting intensity and direction.
Q5: What is the expected lifespan of the LEDs?
The LEDs have a rated lifespan of 50,000 hours with a warranty of 3 years for the standard model.
Q6: What area can one 1000W unit cover?
At a height of 1 meter, the lighting area covers approximately 6.0 square meters.
